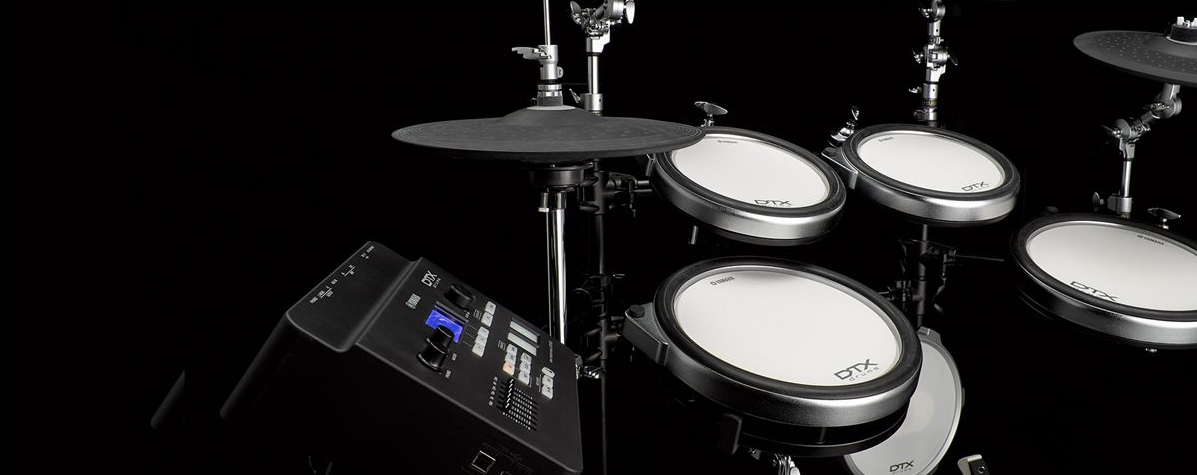

Yamaha DTX760K Digital Electronic Drum Set DTX-760K DTX 700 Series

$5,199.00$5,279.00

Product includes:

  • Yamaha AC Power Adapter
  • 1 Year Local Yamaha Warranty
  • Free Delivery in Singapore Only
  • Select Option with Assembly if required
Clear
- +
Add to WishlistAdd to Compare

In addition to the 1,268 drum and percussion sounds and 128 instrument voices, you can add new sounds to the DTX700 by simply loading them into the included 64MB Flash-ROM. By incorporating the DTX-PADs (the most advanced drum pads ever made) for the snare and toms you develop real drum playing technique the more you play the drums. And you’ll be playing day and night with the on-board practice songs that let you mute the drums and play along; you can even record yourself for further study.

*When connecting a PCY90AT be sure to turn the power OFF.

Combining the superior playability of the DTX-PADs, real hi-hat controller and natural sounds, this system is superb for authentic training to really improve your acoustic drumming skills.



DTX750K

Tone Generator Polyphony 64
Voices 1,268 drums + 128 melodies
Drum Kit Preset: 50, User: 10 *1
Songs 2 demos, 44 songs, 17 pad songs
Expandability Up to 2 pads
Sampling No
Audio Import Yes
Cubase AI Yes
Input / Output STANDARD PHONE L/RUSB To Host/Device

Specification

DTX760K DTX720K
Configuration
Trigger Module DTX700 DTX700
Rack System RS700 RS502
Size/Weight (Trigger Module)
Dimensions Width 277 mm (10-29/32 inch) 277 mm (10-29/32 inch)
Height 213 mm (8-25/64 inch) 213 mm (8-25/64 inch)
Depth 95 mm (2-3/4 inch) 95 mm (2-3/4 inch)
Weight Weight 1.5 kg (3.31 lbs) 1.5 kg (3.31 lbs)
Tone generator
Maximum Polyphony 64 notes 64 notes
Voices Drum and percussion: 1,268, Melodies: 128 Drum and percussion: 1,268, Melodies: 128
Effects Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands
Drum kits Preset: 50, User: 10 * all of which may be edited and overwritten Preset: 50, User: 10 * all of which may be edited and overwritten
Sequencer
Note Capacity Approx. 152,000 notes Approx. 152,000 notes
Note Resolution 480 ppq (parts per quarter note) 480 ppq (parts per quarter note)
Song recording type Real-time replace Real-time replace
Song tracks 1 track 1 track
Songs Demo: 2, Practice: 44, Pad: 17, User: 30 * all of which may be edited and overwritten Demo: 2, Practice: 44, Pad: 17, User: 30 * all of which may be edited and overwritten
Sequence formats Proprietary, SMF format 0 Proprietary, SMF format 0
Click
Tempo 30 to 300 BPM, Tap Tempo supported. 30 to 300 BPM, Tap Tempo supported.
Beat 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Timing Accents, Quarter note, Eighth note, Sixteenth note, Triplet Accents, Quarter note, Eighth note, Sixteenth note, Triplet
Training Functions Measure break, Groove check, Rhythm gate Measure break, Groove check, Rhythm gate
Other
Connectors USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Input 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Input 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT
Accessories Power Adaptor (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner’s Manual, Data List, DVD-ROM (Cubase AI) Power Adaptor (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner’s Manual, Data List, DVD-ROM (Cubase AI)
Audio Import
Samples 500 500
Sample Data Bits 16 bits 16 bits
Sampling Time * Mono/Stereo 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec. 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
Sample formats WAV, AIFF WAV, AIFF





Purchase with Purchase (PWP)

Adapter + Foot Pedal + Drum Stool (No Assembly), Adapter + Foot Pedal + Drum Stool + Assembly
