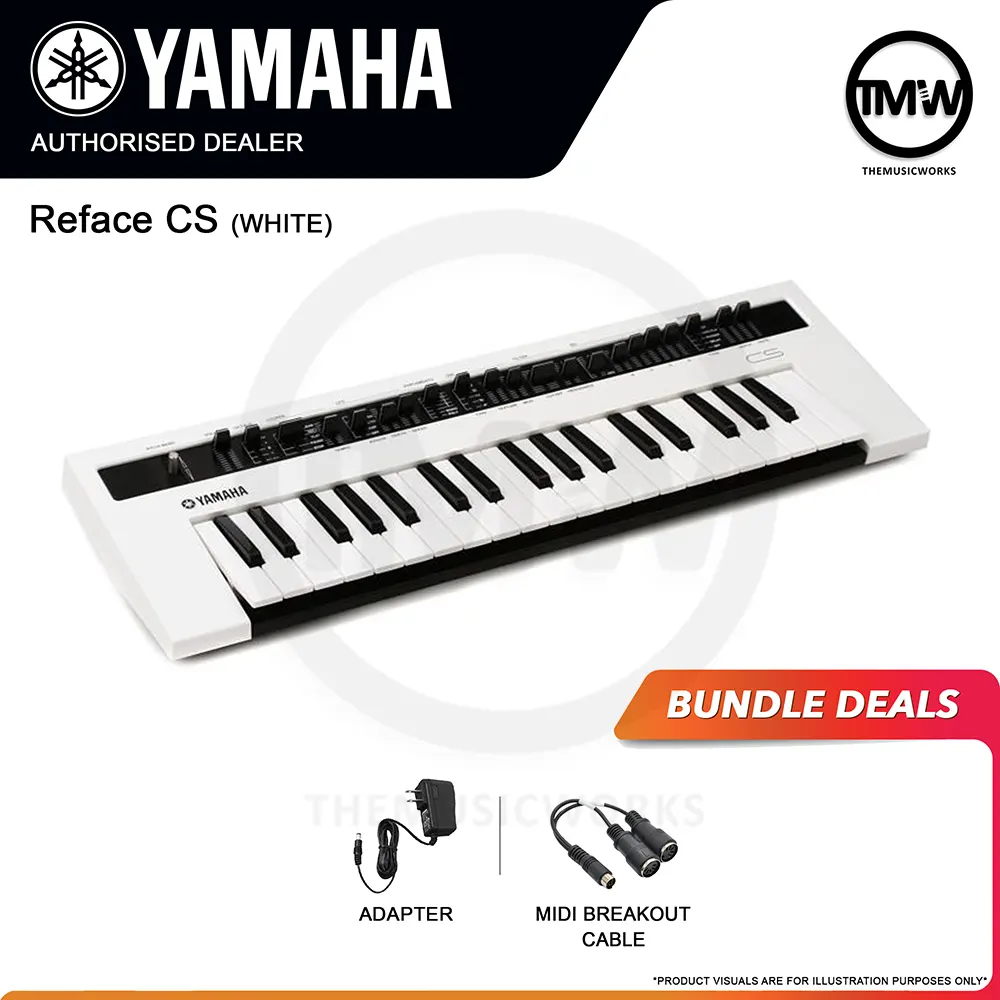

Yamaha Reface CS – Portable Virtual Analog Synthesizer Keyboard
The legendary and iconic Yamaha CS-80 polyphonic has inspired the creation of an advanced virtual analog synthesizer keyboard, Yamaha Reface CS with a much more compact design and powerful synth sounds. Reface CS is equipped with 5 types of oscillator modules, onboard effects, a variety of lush pads, fat basses, and solo leads. Tweakability and customization have always been the Reface series best feature, with a set of Texture and Mod sliders, you can produce your signature synth sounds on a powerful Analog Physical Modeling engine. Not to mention it only weighed 1.9 kg, so it’s generally a synth-to-go keyboard for a live performance or recording.
Reface CS Features
AN Sound Engine with various synth and oscillator modules types
5 types of onboard effects processors for more sound customization to explore.
8-note polyphony enables you to develop multiple chords and pads.
Synth basses and solo leads are enabled with the Mono mode.
Phrase Looper, overdubs your sound ideas on a looping sequence.
37 HQ mini keys with initial touch for premium feel and response.
Built-in 2W and 3Cm stereo speakers system.
Enhanced bass response supported by the new bass reflex port technology.
Up to 5 hours playing time with 6 AA batteries.
Computer and iOS connection compatible with USB To Host port
Reface CS Specifications
Yamaha Reface CS
NUMBER OF KEYS
HQ mini (High-Quality mini)
AN (Analog Physical Modeling)
AMPLIFIER & SPEAKERS
2 W x 2
3 cm x 2
6 W (When using PA-130 power adaptor)
Approximately 5 hours
AUTO POWER OFF
PA-130 or an equivalent recommended by Yamaha
Six “AA” size batteries or Ni-MH rechargeable batteries
AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale
NUMBER OF TYPES
5 OSC types
Distortion, VCM Chorus/Flanger, VCM Phaser, Delay
NUMBER OF VOICES
530 mm (20 7/8″)
60 mm (2 3/8″)
175 mm (6 7/8″)
1.9 kg (4 lbs, 3 oz) (not including batteries)
DC IN (12 V) jack
PHONES (6.3 mm, stereo phone jack)
MIDI (mini-DIN IN/OUT)
AUX IN (3.5 mm, mini stereo phone jack)
L/MONO, R (6.3 mm, TS phone jack, unbalanced)
USB TO HOST
FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
Reface CS Manuals Download
Please download from the links below all of the PDF Manuals related to Yamaha Reface CS
