Name: Yamaha MX88 Synthesizer Keyboard
Brand: Yamaha

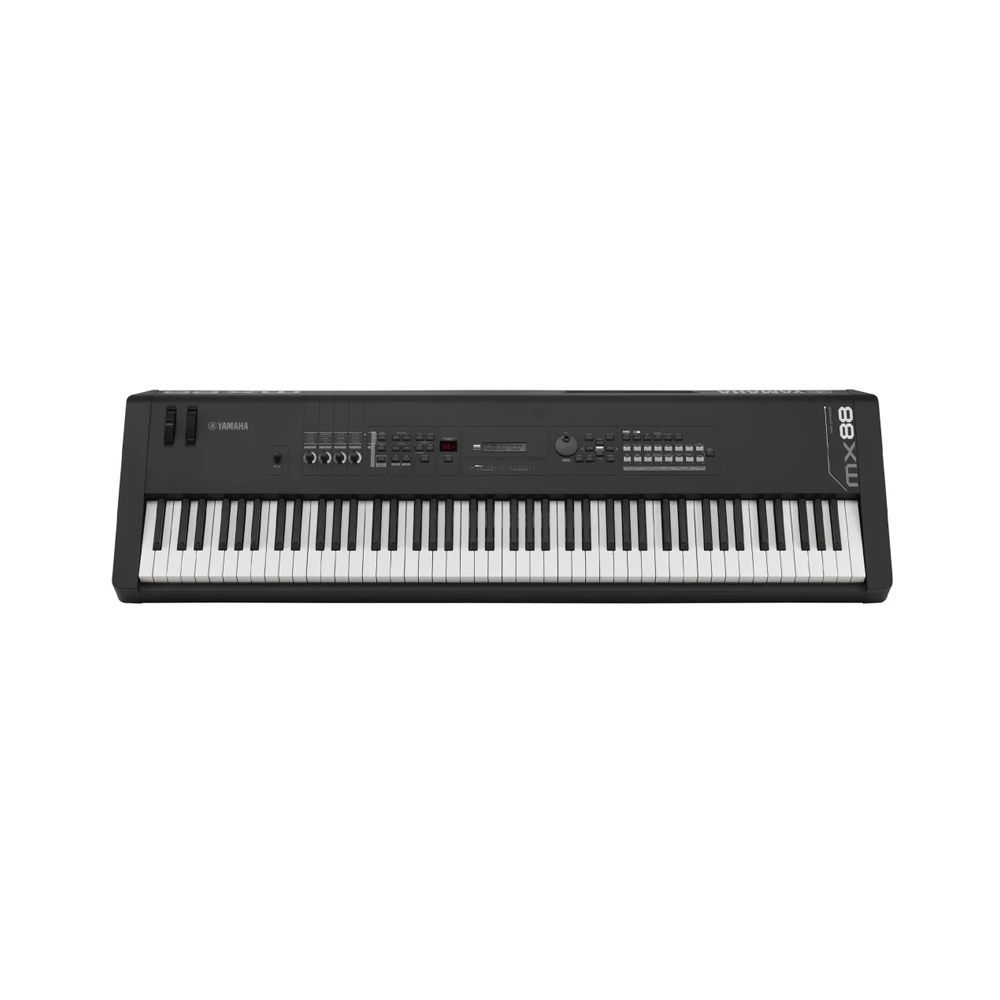

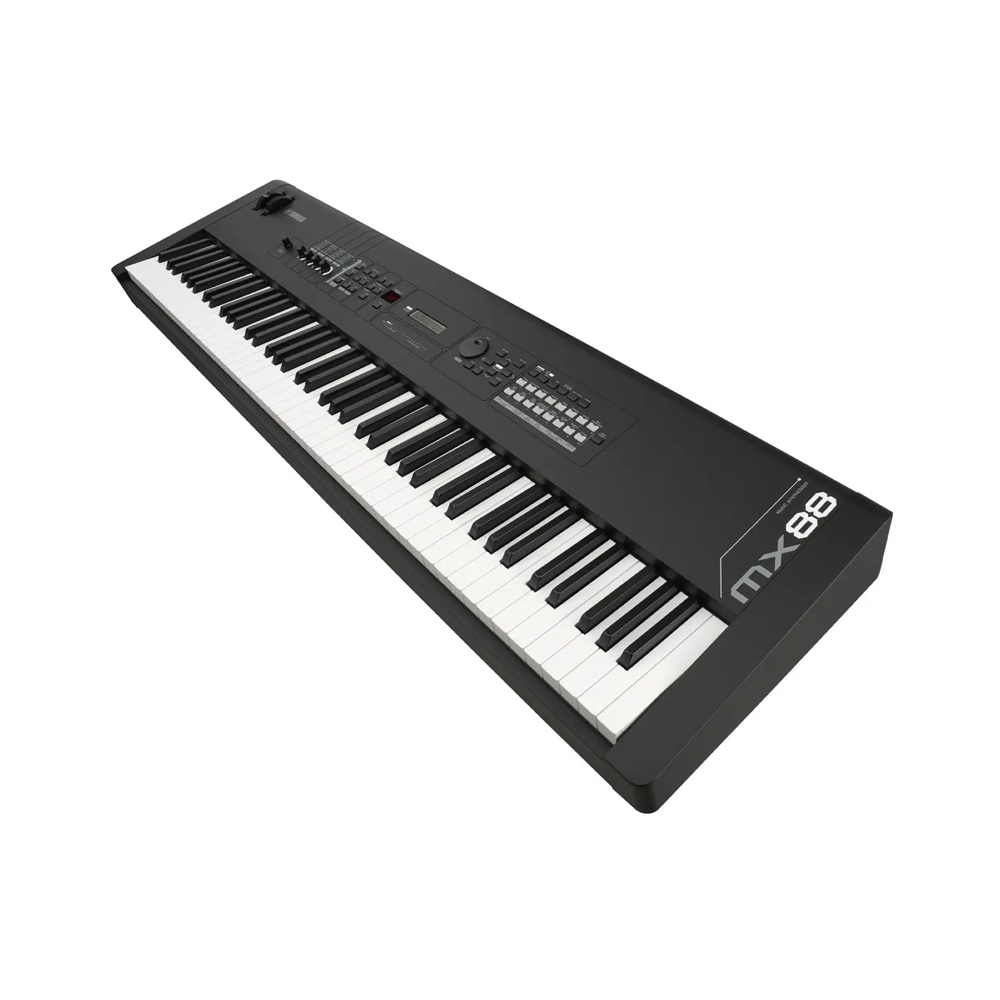

Yamaha MX88 – 88-Key Synthesizer Keyboard with MOTIF Sounds

The Yamaha MX88 combines the expressive feel of an acoustic piano with the versatility of a professional synthesizer. Its 88-key Graded Hammer Standard (GHS) keyboard provides a natural, weighted playing experience, while the powerful Yamaha MOTIF XS sound engine delivers over 1,000 high-quality voices for stage performance, studio production, and music creation.

The MX88 also features a Full Concert Grand Piano sound, Virtual Circuitry Modeling (VCM) effects, 128-note polyphony, and 16-part multi-timbral capability. With USB audio and MIDI connectivity, DAW control, and compatibility with the FM Essential iOS app, the MX88 offers a complete and portable setup for modern musicians.

Yamaha MX88 Features

88-key GHS weighted-action keyboard for a natural piano feel.
Over 1,000 MOTIF XS voices, including premium acoustic and electric pianos.
128-note polyphony and 16-part multi-timbral capability.
VCM effects and Grand Piano Damper Resonance DSP.
USB audio/MIDI connectivity with DAW remote control.
Compatible with FM Essential for expanded FM synthesis.
16-track sequencing and versatile performance controls.
Compact design suitable for stage and studio use.

Yamaha MX88 Specs

MODEL	Yamaha MX88
SIZE/WEIGHT
WIDTH	1320 mm
HEIGHT	168 mm
DEPTH	405 mm
WEIGHT	13.9kg
CONTROL INTERFACE
NUMBER OF KEYS	88
INITIAL TOUCH	Yes
TONE GENERATOR
TONE GENERATOR	AWM2
MAXIMUM POLYPHONY	128 notes
MULTI TIMBRAL CAPACITY	16 parts (Internal)
WAVE	Approx.166 MB (when converted to 16-bit linear format)
VOICES	Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
PERFORMANCE	User: 128 (16 parts)
EFFECTS	Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)
SEQUENCER
TEMPO (BPM)	5 – 300
SONGS	27 Demo Songs
PATTERNS	208 Patterns
ARPEGGIO	999 types
SEQUENCE FORMATS	SMF Format 0 (playback only)
OTHER
SEQUENCE SOFTWARE COMPATIBILITY	For Windows®: Cubase 6 or later, SONAR X1 Producer, For Mac®: Cubase 6 or later, Logic Pro 9, Digital Performer 7 *Functions to be controlled differ depending on the software
CONTROLLERS	Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
DISPLAY	3 digit LED + 20 x 2 line character LCD (backlit)
CONNECTORS	OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
POWER SUPPLY	9 W
ACCESSORIES	AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)

Manual Download

Please download the owner’s manual and other reference PDFs related to the Yamaha MX88.

Owner’s Manual PDF – CLICK HERE
Reference Manual PDF – CLICK HERE
Data List PDF – CLICK HERE
