Yamaha PSR-E463 features 76 touch-response keys, AWM Stereo Sampling, 758 voices, 48 polyphony, 235 styles, LCD display, and onboard speakers.

Package Includes

YAMAHA AC Power Adapter

YAMAHA Music Rest

1 Year Local Warranty (Fulfilled by Yamaha Singapore)

Free Delivery in Singapore (No Assembly Assistance)

Purchase Your Optional Accessories Here

Headphones – CLICK HERE

Stretchable Key Cover ($25) – CLICK HERE

Yamaha FC5 Sustain Pedal ($29) – CLICK HERE

Yamaha FC4A Sustain Pedal ($45) – CLICK HERE

*Yamaha PSR-E463 is Available in Limited Stock, Buy Now!

Note: Please check out the new model here: Yamaha PSR-E473

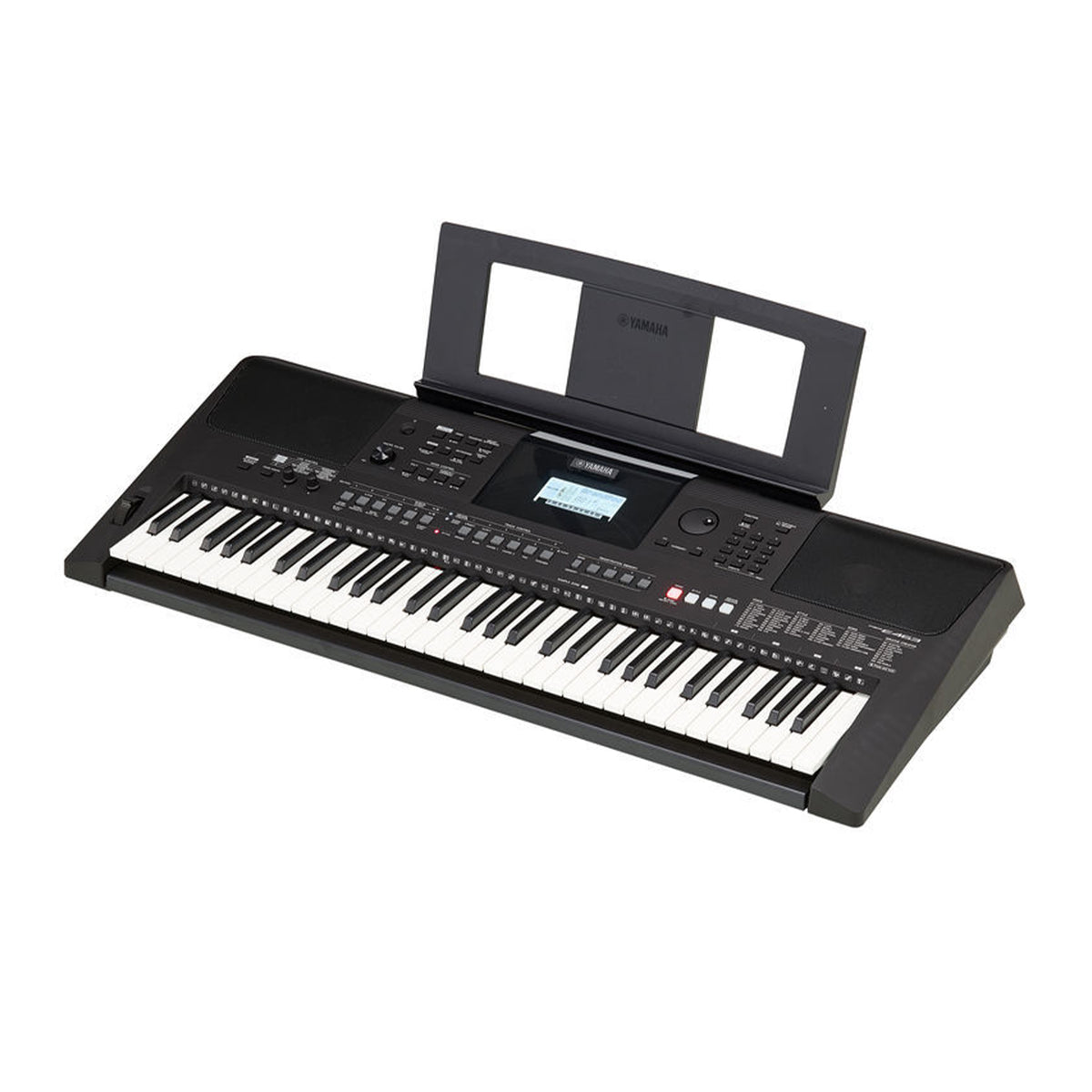

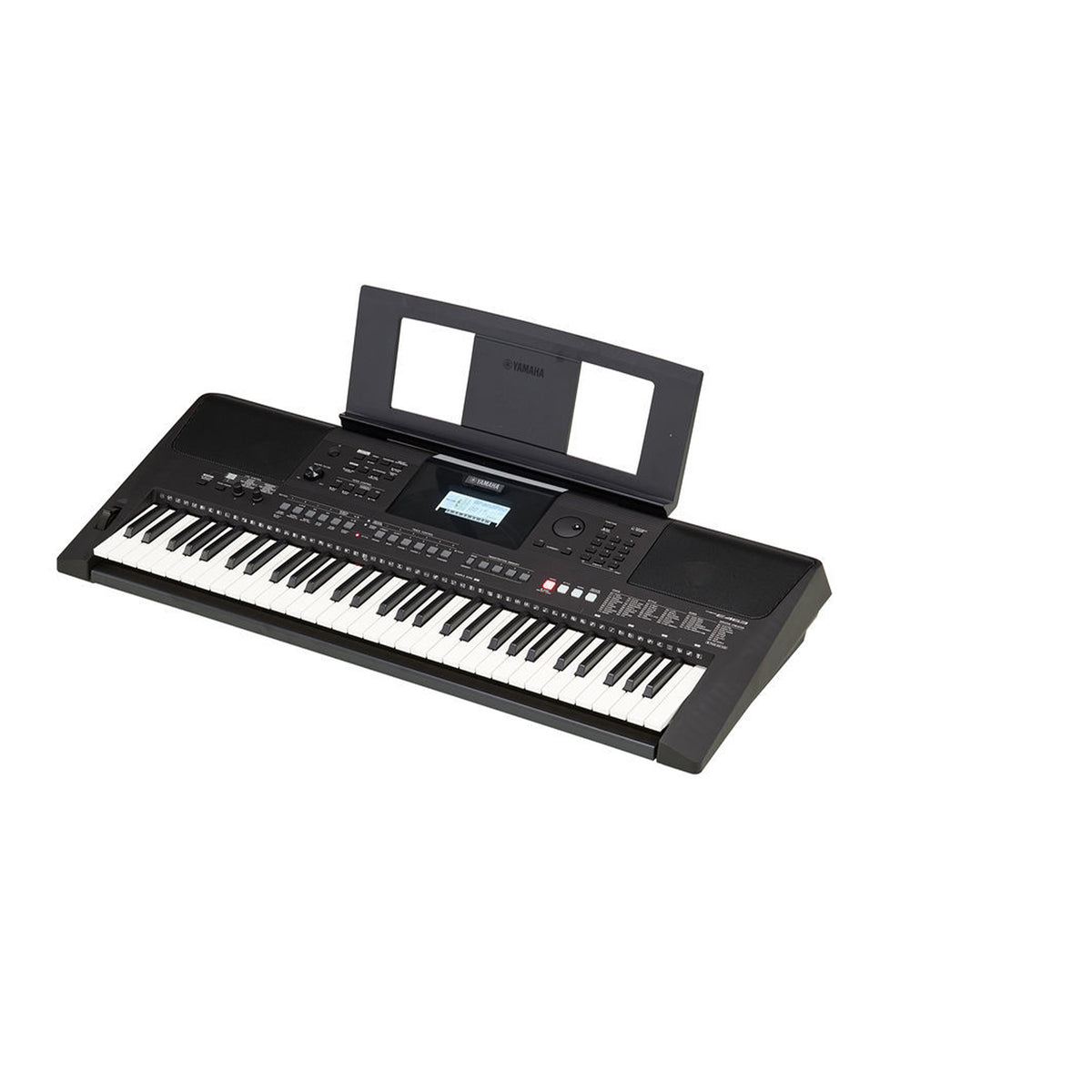

Yamaha PSR-E463 - Groove Maker Portable Keyboard

PSR-E463 is the best entry keyboard for performing various styles of music, from the latest to vinyl favorites. It has a 61-key touch response keyboard with powerful on-board speakers and easy-to-use professional features like assignable Live Control knobs, Quick Sampling, Groove Creator and USB Audio Recorder.

758 high quality voices including Sweet! and Cool! voices, with 48-note polyphony

Quick Sampling function - 5 sample (1 Normal type + 4 One shot/Loop type) Max 9.6 sec/sample

Groove Creator function - 35 grooves, 5 sections(4 main +1 Musical Climax)

235 auto accompaniment Styles

USB Audio Recorder - 80 minutes. (.wav)

6W + 6W amplifiers with 12 cm Bass Reflexed speakers

Assignable real-time Control Knobs, DSP Effects, and Pitch Bend

Connectivity with audio and MIDI capabilities

Sound

The better an instrument sounds, the more it inspires us

Yamaha has a proud history of manufacturing just about every kind of musical instrument. When it comes to reproducing the sound of these instruments in a keyboard, the results are detailed and high-quality.

The PSR-E463 features a comprehensive library of 758 instrument Voices that will allow you to enjoy playing any musical genre.

Quick Sampling - The possibilities are endless

Capture sounds using the AUX Input and play them back from the keyboard. Easy-to-operate Quick Sampling via AUX-In terminal so that you can play your favorite external sounds!

Groove Creator - Make music like a DJ

You can perform the latest music styles from the keyboard like a DJ - lay down a beat, tweak the groove, adjust the mix and get the dance party started!

Real-time backing band tracks

235 auto Accompaniment Styles, including 10 new local Styles and 5 contemporary Styles inherited from Genos, provide real-time band backing tracks based on the chords you play.

Function

Memorizing your favorite settings

The Registration Memory function allows you to save 4 x 8 panel settings for instant recall.

Intuitive “Live Control Knob” interface

Change sounds on-the-fly by switching the effect destination!

Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer.

10 DSP effects can be assigned and controlled by the knobs for dynamic and expressive live performance.

The Pitch Bend wheel adjusts the pitch of the sound bringing voices like the Guitar, Sax and Trumpet to life.

"Target" button supports quick target change of effect destination.

More convenient USB TO DEVICE terminal

You can record your performances to USB Flash Drives. The USB TO DEVICE terminal on the instrument lets you load and save your settings and songs to a USB flash drive, as well as transfer data from your PC.

Connection

Connect to portable devices or computers for even more fun

The PSR-E463 features audio transfer through the USB TO HOST terminal*. You can record your performance to your computer or smart device.

Connecting to your iOS device adds a new dimension of MIDI control with apps.

Connect an external audio player to the AUX IN jack and you can play along with your favorite tunes. The built-in, advanced Melody Suppressor lowers the volume of vocals and melody lines of the original recordings, leaving that part open for you to play or sing**.

PSR-E463 Specifications

Model	PSR-E463
Body Color	Black
Width	946 mm (37-1/4")
Height	139 mm (5-1/2")
Depth	404 mm (15-15/16”)
Weight	6.6 kg (14 lb, 9 oz) not including batteries
Number of Keys	61
Touch Response	Soft, Medium, Hard, Fixed
Pitch Bend	Yes
Control Knobs	Yes
Display Type	LCD (Liquid Crystal Display)
Language	English
Tone Generating Technology	AWM Stereo Sampling
Number of Polyphony (Max.)	48
Number of Voices	758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices)
Featured Voices	8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices
GM	Yes
XGlite	Yes
DSP	10 types (assignable on control knobs)
Reverb	12 types
Chorus	5 types
Master EQ	6 types
Harmony	26 types
Dual/Layers Function	Yes
Split Function	Yes
Arpeggio	150 types
Melody Suppressor	Yes
Crossfade	Yes (for Internal/AUX IN)
Number of Preset Styles	235
Fingering	Smart Chord, Multi-finger
Style Control	ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
File Format	Style File Format (SFF)
One-Touch Setting (OTS)	Yes
Expansion Style	10
Number of Groove	35
Number of Sections	5 (4 Sections + 1 Musical Climax/Ending)
Number of Preset Songs	30
Number of Songs	10
Number of Tracks	6 (5 Melody + 1 Style/Groove Creator)
Data Capacity	Approx. 19,000 notes (when only “melody” tracks are recorded)
Recording Function	Yes
Playback Format	SMF Formats 0 & 1
Recording Format	Original File Format (SMF 0 conversion function)
Recording Time (max.)	80 minutes (approx. 0.9 GB) per Song
Playback Audio Format	WAV (44.1 kHz, 16 bit, stereo)
Recording Audio Format	WAV (44.1 kHz, 16 bit, stereo)
Sampling Type	Normal, Oneshot, Loop
Samples (Preset/User)	5
Sampling Time	Approx. 9.6 sec
Sampling Sources	AUX IN
Sampling Format	Original File Format (16 bit, stereo)
Sampling Rate	44.1 kHz
USB audio interface	44.1 kHz, 16 bit, stereo
Number of Registration Buttons	4 (x 8 banks)
Metronome	Yes
Tempo Range	11 - 280
Transpose	-12 to 0, 0 to +12
Tuning	427.0–440.0–453.0 Hz (approx. 0.2 Hz increments)
Scale Setting	Yes
PIANO Button	Yes (Portable Grand Button)
Internal Storage Memory	Approx. 1.73 MB
External Drives	USB flash drive
DC IN	12 V
AUX IN	Yes (Stereo-mini)
Headphones	x 1 (PHONES/ OUTPUT)
Sustain Pedal	Yes
USB TO DEVICE	Yes
USB TO HOST	Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo)
Amplifiers	6 W + 6 W (When using PA-150 AC adaptor)
Speakers	12 cm × 2
Power Supply	AC Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries)
Power Consumption	8 W (When using PA-150 AC adaptor)
Auto Power Off Function	Yes
Music Rest Included	Yes
Song Book	Download from Yamaha web site

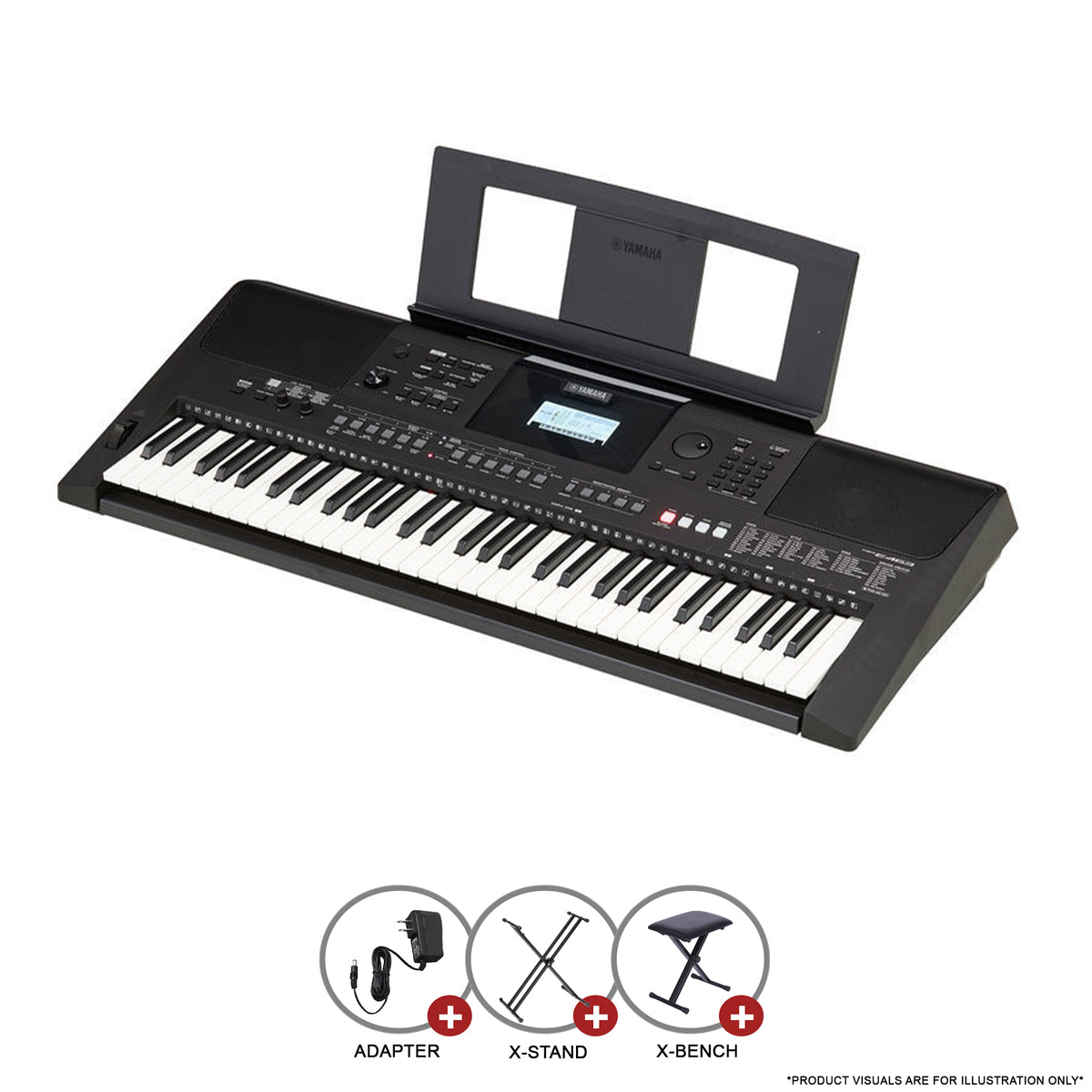

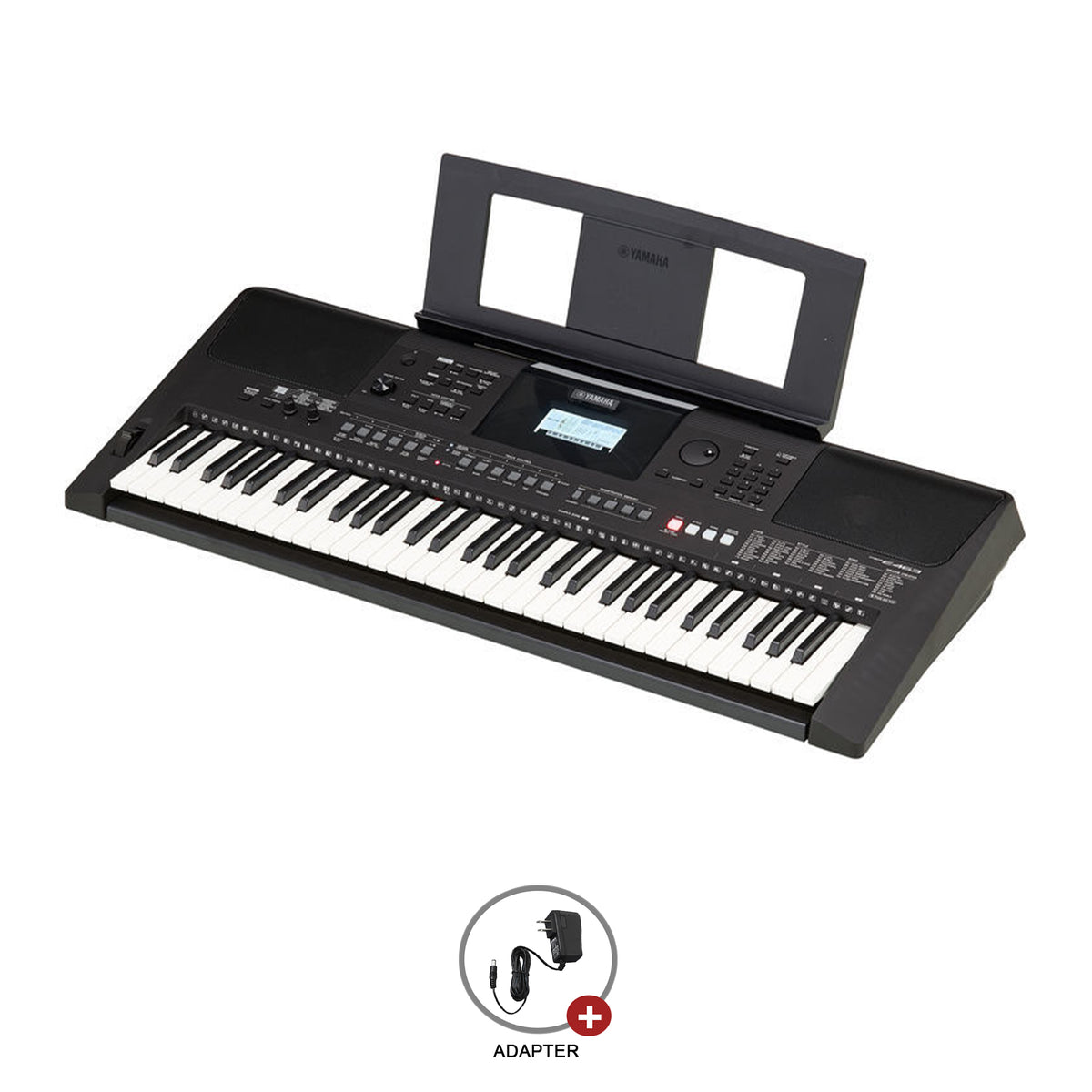

Yamaha PSR-E463 Electronic Keyboard
