Derived from FG820 which has a solid spruce top and mahogany back/sides, FGX820C has a cutaway body and an electric system. Yamaha’s proprietary under-saddle piezo pickup and System66 analog preamp ensure the solid plugged-in performance.

Yamaha FGX820C Features

Traditional Western Body

Solid Spruce Top

Mahogany Back & Sides

Newly Developed Scalloped Bracing

Warm and Strong Sound

Yamaha FGX820C is in Limited Stock, please have a chat with us first!

WHAT'S INCLUDED:

- Free Delivery

- 12 Months Local Warranty

OVERVIEW:

Derived from FG820 which has a solid spruce top and mahogany back/sides, FGX820C has a cutaway body and an electric system. Yamaha's proprietary under-saddle piezo pickup and System66 analog preamp ensure solid plugged-in performance.

Newly Developed Scalloped Bracing

A new FG has louder and stronger sound in the low- to mid-ranges, thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division. Yamaha’s engineers have achieved this sound by utilizing analysis and simulation to arrive at the best bracing design without depending on tradition or guesswork. This analysis led to the development of the new scalloped bracing pattern, a new and ideal acoustic structure that maintains the durability of the top board while bringing out the most sound the Yamaha FG has to offer.

50 Years of History

The history of Yamaha‘s FG series started in 1966 with the release of the FG180 and FG150. Over the 50 years since its introduction, we have developed and produced several generations of FG - all of which have made FG the ideal acoustic for contemporary players. In all, there have been over 200 FG models since 1966.

Made in Yamaha

Every aspect of an FG is crafted to make a better guitar. From painstakingly cured and dried woods to beautiful hand-sprayed finishes and detailed quality control checks each and every FG is made to be a lifelong partner.

Mahogany Back & Sides

Rich midrange Warm and strong sound Quick response

Electric System

System 66 features an under-saddle piezo pickup developed by Yamaha. Controls include a 3-band EQ, an adjustable mid-range frequency control, and a precision chromatic tuner for optimum sound tailoring. The system is powered by easy-to-obtain AA-size batteries that provide a stable power supply for improved sound quality.

Specs

General Specifications

Body Shape		Traditional Western Cutaway
Scale Length		650mm (25 9/16”)
Body Length		505mm (19 7/8")
Total Length		1038mm (40 7/8")
Body Width		412mm (16 1/4")
Body Depth		100-118mm (3 15/16”- 4 5/8”)
Nut Width		43mm (1 11/16”)
String Spacing *		11.0mm
Top Material		Solid Spruce
Back Material		Mahogany
Side Material		Mahogany
Neck Material		Nato
Fingerboard Material		Rosewood
Fingerboard Radius		R400mm (23 5/8")
Bridge Material		Rosewood
Nut Material		Urea
Saddle Material		Urea
Bridge Pins		Black ABS with White Dot
Tuners		Die-cast Chrome(TM29T)
Body Binding		Cream
Soundhole Inlay		Black + White
Pickguard		Tortoise Pattern (Black for BL color variation)
Body Finish		Gloss
Neck Finish		Matt
Electronics		SYSTEM66 + SRT Pickup
Controls		Vol/3-band EQ/Tuner/Mid FQ
Connections		LINE OUT
Strings		.012/.016/.025(or.024)/.032/.042/.052(or.053)
Color		Natural, Black
Accessories		Hex Wrench, 2 x AA Batteries
Case		None

* Measured from the center of one bridge pin to the center of the next bridge pin

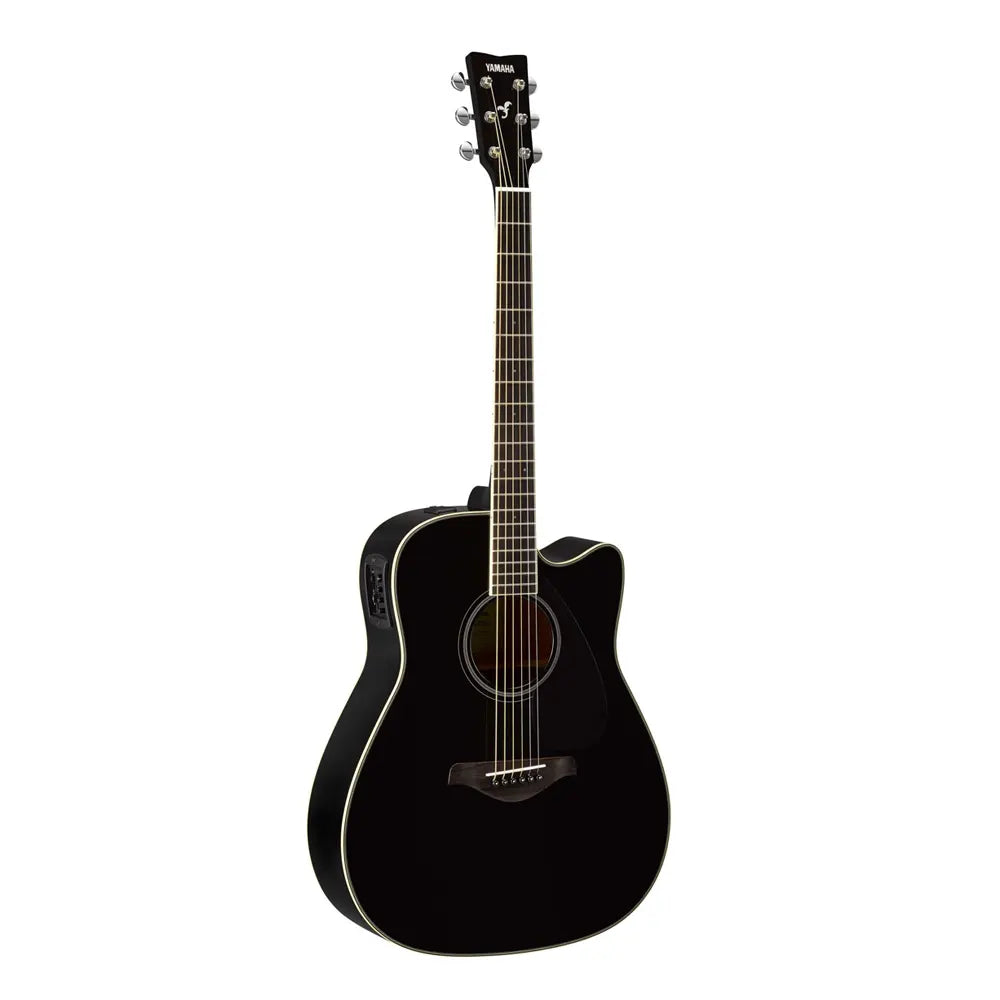

Yamaha FGX820C Acoustic-Electric Guitar
